On Wildcats
« on: October 20, 2009, 01:27:57 am »
For example, yesterday I learned that .35 Whelen is just a 30-06 case "necked up."

Does that mean that the 30-06 casing is literally stretched out?  Or do they manufacture a whole new casing?

Basically, I'm trying to ask how necking up or down works... :coffee
CaliforniaThere are many like it, but this one is mine.

WeTheArmed.com

  • Advertisement
  • ***

    Thernlund

    • WTA Staff
    • Senior Contributor
    • *****
    • Posts: 14101

    • Offline
    Re: On Wildcats
    « Reply #1 on: October 20, 2009, 07:04:52 pm »
    They stretch it out very carefully using a die.  But this isn't true of all wildcats.  If the size change is too extreme, stretching isn't an option and creating a new case is in order.

    Sometimes a wildcater will cut a very long case at the shoulder and then neck that down to the desired size rather than necking UP another already shouldered case.


    -T.
    Arizona  Arm yourself because no one else here will save you.  The odds will betray you, and I will replace you...

    AR lover

    • Senior Member
    • ***
    • Posts: 742

    • Offline
    Re: On Wildcats
    « Reply #2 on: October 20, 2009, 07:08:31 pm »
    They stretch it out very carefully using a die.  But this isn't true of all wildcats.  If the size change is too extreme, stretching isn't an option and creating a new case is in order.

    Sometimes a wildcater will cut a very long case at the shoulder and then neck that down to the desired size rather than necking UP another already shouldered case.


    -T.
    Another option in some cases (no pun intended ;D ) is getting virgin brass, brass that has been unformed from the factory.  So, straight wall .30-06 brass, do whatever you wish with it.

    only1asterisk

    • Just some guy, you know?
    • Senior Contributor
    • *****
    • Posts: 2405

    • Offline
    Re: On Wildcats
    « Reply #3 on: October 20, 2009, 09:04:49 pm »
    All the above is correct, of course.  It gets rather involved when you make radical changes, but in the case of .35 Whelen and the like a case is simply run over a tapered expander and the case neck opened up like one would resize a ring.

    To neck down a case, the case is run into a die with a smaller neck.  You do this everytime you resize the neck when you reload, necking down is just more of the same.


    When you neck up or down, you also thin or thicken the case neck slightly.  Most wildcat chambers take this into account.  If you were to try to make .22-250 cases from 30-06 this would need to be addressed.  Fortunately, 22-250 cases are easy to buy.  Necking down cases also makes them longer.  A radical example:


    Factory cases are typically formed to be useful in the cartridge for which they are headstamped.  This isn't always the case, but 99%.  I've got cylindrical  brass from several manufacturers, but you mostly have to seek this out.

    THE NORSEMAN

    • To preserve liberty, it is essential that the whole body of the people always possess arms, and be taught alike, especially when young, how to use them. - Richard Henry Lee
    • Moderator
    • Senior Contributor
    • *****
    • Posts: 5071

    • Offline
    Re: On Wildcats
    « Reply #4 on: October 27, 2009, 12:02:04 am »
    Right.  Wildcats are fun.  Which is why I'm having a 35 Brown Whelen built on a sporterized 1903 as we speak.( the brown Whelen is basically just a 35 Whelen with the shoulder blown a bit forward for a little more powder capacity.

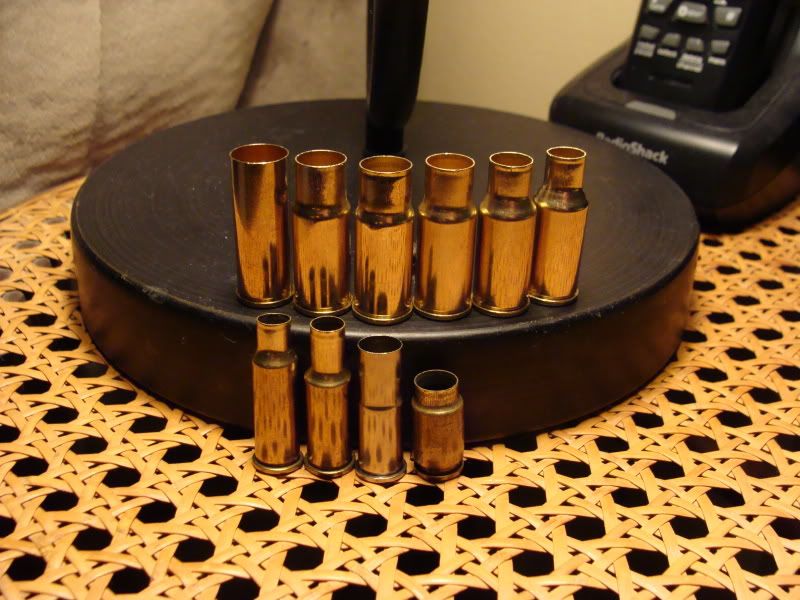

    There are other ways to make wildcat cases as well.  The original 445 supermag cases were 30-40 Krag rifle brass cut off and then reamed/bored to take .429" dia. 44 mag slugs.
    This may be considered as the true palladium of liberty. . . . The right of self defence is the first law of nature: in most governments it has been the study of rulers to confine this right within the narrowest limits possible. Wherever standing armies are kept up, and the right of the people to keep and bear arms is, under any colour or pretext whatsoever, prohibited, liberty, if not already annihilated, is on the brink of destruction- St. George Tucker, Blackstone's Commentaries

    FMJ

    • 7.62
    • Senior Contributor
    • *****
    • Posts: 14344
    • "A good black coffee is like a good liquid cigar"

    • Offline
    Re: On Wildcats
    « Reply #5 on: October 27, 2009, 12:10:30 am »
    But then how do you ensure your franken-bullit will be safe to use?
    CaliforniaThere are many like it, but this one is mine.

    JesseL

    • Gun Mangler
    • WTA Staff
    • Senior Contributor
    • *****
    • Posts: 12451

    • Offline
    Re: On Wildcats
    « Reply #6 on: October 27, 2009, 12:19:28 am »
    But then how do you ensure your franken-bullit will be safe to use?

    The classic method for amateur experimenters is to measure the case head expansion of their rounds and compare with how much expansion is usually seen in the parent case.

    Today there is also relatively affordable pressure measuring equipment available, such as this:
    http://www.shootingsoftware.com/pressure.htm
    http://www.oehler-research.com/model43.html
    Arizona

    MarshallDodge

    • Seconds count. Misses don't.
    • Contributor
    • ****
    • Posts: 1089

    • Offline
    Re: On Wildcats
    « Reply #7 on: October 27, 2009, 12:23:51 am »
    Wildcats are cool.  I never thought I would get into wildcatting until one day I stumbled upon a beautiful Sako in 17-222.  This is a 222 Remington necked down to take a 17 caliber bullet.

    My first time at the range I did a quick sight in at 50 yards then proceeded to set a pop can filled with water at the same distance.  I took a shot then went downrange to see the damage.  What I was looking for was a can with a small entrance hole and a large exit but what I found was a many small pieces of a can that had been destroyed by a 25 grain bullet moving at 3900 FPS.  That bullet must have completely grenaded.

    Someday I need to try it on a prairie dog......
    "A government big enough to give you everything you want, is strong enough to take everything you have." -Thomas Jefferson

    FMJ

    • 7.62
    • Senior Contributor
    • *****
    • Posts: 14344
    • "A good black coffee is like a good liquid cigar"

    • Offline
    Re: On Wildcats
    « Reply #8 on: October 27, 2009, 12:54:19 am »
    You should try on a p-dog.  >:D
    CaliforniaThere are many like it, but this one is mine.

    THE NORSEMAN

    • To preserve liberty, it is essential that the whole body of the people always possess arms, and be taught alike, especially when young, how to use them. - Richard Henry Lee
    • Moderator
    • Senior Contributor
    • *****
    • Posts: 5071

    • Offline
    Re: On Wildcats
    « Reply #9 on: October 27, 2009, 08:50:06 am »
    Quote
    But then how do you ensure your franken-bullit will be safe to use?
      Are you talking about the rifle I'm having built?

    Be assured that the guy building it is not named "Frank", and he's very good at what he does. The 1903 is a good action to build on for non-magnum applications, and Shilen barrels are a high quality product. ;)

    The big keys:

    1. Having a safe action to build on(best determined by a good gunsmith with the proper equipment)

    2. Having a correctly head spaced chamber.(Again gunsmith territory with the exception of Savage rifles with a barrel nut.)

    3.  Your/my job?  Understanding powder burn rates, knowing how to watch for pressure signs, and knowing how to use a chrono during load development.
    This may be considered as the true palladium of liberty. . . . The right of self defence is the first law of nature: in most governments it has been the study of rulers to confine this right within the narrowest limits possible. Wherever standing armies are kept up, and the right of the people to keep and bear arms is, under any colour or pretext whatsoever, prohibited, liberty, if not already annihilated, is on the brink of destruction- St. George Tucker, Blackstone's Commentaries

    FMJ

    • 7.62
    • Senior Contributor
    • *****
    • Posts: 14344
    • "A good black coffee is like a good liquid cigar"

    • Offline
    Re: On Wildcats
    « Reply #10 on: October 27, 2009, 09:41:39 pm »
    And now I will take the liberty to clear up some issues that do not let me understand head spacing.

    For example, in laymans terms, what does it mean that cartridge XYZ headspaces at the shoulder?

    And then I remember hearing something about headspacing and gos and no-gos.

    ???
    CaliforniaThere are many like it, but this one is mine.

    JesseL

    • Gun Mangler
    • WTA Staff
    • Senior Contributor
    • *****
    • Posts: 12451

    • Offline
    Re: On Wildcats
    « Reply #11 on: October 27, 2009, 10:22:05 pm »
    And now I will take the liberty to clear up some issues that do not let me understand head spacing.

    For example, in laymans terms, what does it mean that cartridge XYZ headspaces at the shoulder?

    And then I remember hearing something about headspacing and gos and no-gos.

    ???

    Headspace is the distance between the breech face of the gun and whatever is the first thing that a chambered cartridge bumps into. Ideally the cartridge will not quite completely fill that distance. Too little headspace and the action can't close. Too much headspace and you may run into problems such as the firing pin not reaching the primer or the case stretching excessively to fill the available space.

    What part of the cartridge it is supposed to headspace on depends on the type of cartridge. Rimmed rounds generally headspace on the rim, straight walled rimless rounds generally headspace on the case mouth, belted rounds headspace on the forward edge of the belt, and rimless bottlenecked rounds typically headspace on the shoulder. There are some exceptions. .357 Sig headspaces on the case mouth, and it's common for handloaders of rimmed or belted bottleneck rounds to minimally resize their used brass so that it headspaces on the shoulder.

    Headspace gauges are used when installing a barrel or cutting a chamber and for checking for safe headspace in a used gun. The gauges are machined steel tools that simulate the critical dimensions of a cartridge. A GO gauge is equal to the minimum length of a cartridge (from the base to the part on which it headspaces), the action must be able to close on the GO gauge or the headspace in too short. A NO-GO gauge is a bit more than the maximum length of a cartridge, the action of a new gun shouldn''t close on a NO-GO. A Field gauge is the absolute maximum length for safe headspace. It's for checking used guns and the action should never close on a field gauge, otherwise it's dangerous to shoot.

    Clear as mud?
    Arizona

    Thernlund

    • WTA Staff
    • Senior Contributor
    • *****
    • Posts: 14101

    • Offline
    Re: On Wildcats
    « Reply #12 on: October 27, 2009, 11:40:53 pm »
    You know... even though I knew all that, I've always wondered what the hell the purpose of a Field gauge is.  That is to say, I know what it's for; if the gun fails the NO-GO, the Field gauge determines if it failed so bad as to become dangerous.

    But it seems to me that a NO-GO gauge would (or should) preclude the need for a Field gauge.  It's like saying, "The milk expired and tastes funny", then following up with "Well, it doesn't taste THAT bad" because you REALLY wanted some milk and didn't want to take your lazy butt to the store.

    ::)


    -T.
    Arizona  Arm yourself because no one else here will save you.  The odds will betray you, and I will replace you...

    FMJ

    • 7.62
    • Senior Contributor
    • *****
    • Posts: 14344
    • "A good black coffee is like a good liquid cigar"

    • Offline
    Re: On Wildcats
    « Reply #13 on: October 27, 2009, 11:57:20 pm »
    Jesse, can you perhaps put up some diagrams?

    Then it will be clear as day.  I am one of those visual learning type of people.
    CaliforniaThere are many like it, but this one is mine.

    Thernlund

    • WTA Staff
    • Senior Contributor
    • *****
    • Posts: 14101

    • Offline
    Re: On Wildcats
    « Reply #14 on: October 28, 2009, 12:08:05 am »
    This is an example of headspacing on the shoulder...



    This is an example of headpsacing on the rim (top) and the belt (bottom)...



    This is an example of headspacing on the mouth...




    -T.
    Arizona  Arm yourself because no one else here will save you.  The odds will betray you, and I will replace you...

    FMJ

    • 7.62
    • Senior Contributor
    • *****
    • Posts: 14344
    • "A good black coffee is like a good liquid cigar"

    • Offline
    Re: On Wildcats
    « Reply #15 on: October 28, 2009, 12:32:48 am »
    THANK YOU.
    CaliforniaThere are many like it, but this one is mine.

    THE NORSEMAN

    • To preserve liberty, it is essential that the whole body of the people always possess arms, and be taught alike, especially when young, how to use them. - Richard Henry Lee
    • Moderator
    • Senior Contributor
    • *****
    • Posts: 5071

    • Offline
    Re: On Wildcats
    « Reply #16 on: October 28, 2009, 07:53:48 am »
    Setting headspace usually involves the gunsmith carefully trimming material off the barrel threads and checking with a headspace gauge until the desired tolerance is reached.  That way a custom built gun can be set up with a super tight chamber in an attempt at a high degree of accuracy, or on the looser side for AK-like reliability.  Mass produced rifles usually split the difference.
    « Last Edit: October 28, 2009, 09:32:45 pm by THE NORSEMAN »
    This may be considered as the true palladium of liberty. . . . The right of self defence is the first law of nature: in most governments it has been the study of rulers to confine this right within the narrowest limits possible. Wherever standing armies are kept up, and the right of the people to keep and bear arms is, under any colour or pretext whatsoever, prohibited, liberty, if not already annihilated, is on the brink of destruction- St. George Tucker, Blackstone's Commentaries

    JesseL

    • Gun Mangler
    • WTA Staff
    • Senior Contributor
    • *****
    • Posts: 12451

    • Offline
    Re: On Wildcats
    « Reply #17 on: October 28, 2009, 11:09:33 am »
    Setting headspace involves the gunsmith carefully trimming material off the barrel threads and checking with a headspace gauge until the desired tolerance is reached.  That way a custom built gun can be set up with a super tight chamber in an attempt at a high degree of accuracy, or on the looser side for AK-like reliability.  Mass produced rifles usually split the difference.

    That's one way to dot it, but depending on the particular action there are several other ways to set headspace too.

    For some bolt actions, especially those that need to have the barrel installed at a particular angle due to things like extractor clearance cuts, the gunsmith may control headspace with how deep the finish reamer is run, rather than by cutting back the shoulder of the barrel.

    In Lee Enfields, the headspace may be adjusted with different size bolt heads.

    In Savage bolt actions, headspace is controlled by how far in the barrel is screwed. The barrel is then locked in place by a lock nut.

    In M14 type rifles, a special pull through chamber reamer driven from the muzzle can be used in a short chambered barrel. Headspace is just right when the bolt closes.

    Arizona

    MarshallDodge

    • Seconds count. Misses don't.
    • Contributor
    • ****
    • Posts: 1089

    • Offline
    Re: On Wildcats
    « Reply #18 on: October 28, 2009, 11:58:16 am »
    This is an example of headspacing on the shoulder...



    -T.

    Nice pics.  Did you draw those?
    "A government big enough to give you everything you want, is strong enough to take everything you have." -Thomas Jefferson

    Thernlund

    • WTA Staff
    • Senior Contributor
    • *****
    • Posts: 14101

    • Offline
    Re: On Wildcats
    « Reply #19 on: October 28, 2009, 01:02:30 pm »
    Naw.  Just found them with Google.


    -T.
    Arizona  Arm yourself because no one else here will save you.  The odds will betray you, and I will replace you...

    THE NORSEMAN

    • To preserve liberty, it is essential that the whole body of the people always possess arms, and be taught alike, especially when young, how to use them. - Richard Henry Lee
    • Moderator
    • Senior Contributor
    • *****
    • Posts: 5071

    • Offline
    Re: On Wildcats
    « Reply #20 on: October 28, 2009, 09:35:19 pm »
    Jesse's right, so I edited my earlier post to reflect that.  However, I note that we're taking  "how to" advice on one of the most critical steps of gun assembly from a safety standpoint from a guy that calls himself a Gun Mangler. :hide
    This may be considered as the true palladium of liberty. . . . The right of self defence is the first law of nature: in most governments it has been the study of rulers to confine this right within the narrowest limits possible. Wherever standing armies are kept up, and the right of the people to keep and bear arms is, under any colour or pretext whatsoever, prohibited, liberty, if not already annihilated, is on the brink of destruction- St. George Tucker, Blackstone's Commentaries

    JesseL

    • Gun Mangler
    • WTA Staff
    • Senior Contributor
    • *****
    • Posts: 12451

    • Offline
    Re: On Wildcats
    « Reply #21 on: October 28, 2009, 09:41:10 pm »
    Dang right. The last thing I need is someone mistaking me for an expert and taking what I say too seriously.
    Arizona

    THE NORSEMAN

    • To preserve liberty, it is essential that the whole body of the people always possess arms, and be taught alike, especially when young, how to use them. - Richard Henry Lee
    • Moderator
    • Senior Contributor
    • *****
    • Posts: 5071

    • Offline
    Re: On Wildcats
    « Reply #22 on: October 29, 2009, 12:53:21 am »
    T-  I think of the field gauge vs. the no-go thing like this:

    The former is a measure of whether pulling the trigger will do more damage to the shooter or the guy he intended to shoot, the latter is more of a accuracy capability test.

    That make any sense?
    This may be considered as the true palladium of liberty. . . . The right of self defence is the first law of nature: in most governments it has been the study of rulers to confine this right within the narrowest limits possible. Wherever standing armies are kept up, and the right of the people to keep and bear arms is, under any colour or pretext whatsoever, prohibited, liberty, if not already annihilated, is on the brink of destruction- St. George Tucker, Blackstone's Commentaries

    Thernlund

    • WTA Staff
    • Senior Contributor
    • *****
    • Posts: 14101

    • Offline
    Re: On Wildcats
    « Reply #23 on: October 29, 2009, 01:15:50 am »
    Mm.  I suppose it does.

    After some thinking on it, the clue might be in the name.  "Field" might mean that when in the field, the only thing that really matters it sending lead down range without damaging yourself in the process.  When under fire, you want the maximum tolerance possible for the sake of speed in making the weapon ready to fight with.  The wider the margin for error the better, eh?  You want to goof with it as little as possible and get in the fight.

    On the other hand, when in the shop or at the bench, you'll have the time to work on the tighter tolerance so as to not be so hard on your brass and the gun in general.

    Just an educated guess.


    -T.
